1.2 Two position four way (2/4) valves

The two position four way valves have only two switching positions and do not have any mid position. Therefore, they are also known as impulse valves. The typical connections of 2/4 valves is shown in Figures 5.5.7 and 5.5.8. These valves can be used to operate double acting cylinders. These are also used to reciprocate or hold an actuator. The operation is faster because the distance between ports of these valves is smaller. Hence, these valves are used on machines where fast reciprocation cycles are needed such as punching and stamping etc.

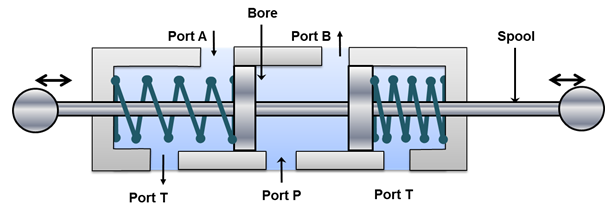

Figure 5.5.7 Two position four way DCV: P to B and A to T

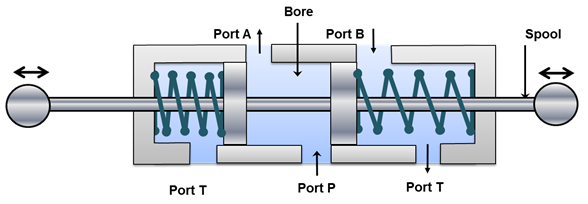

Figure 5.5.8 Two position four way DCV: P to A and B to T
