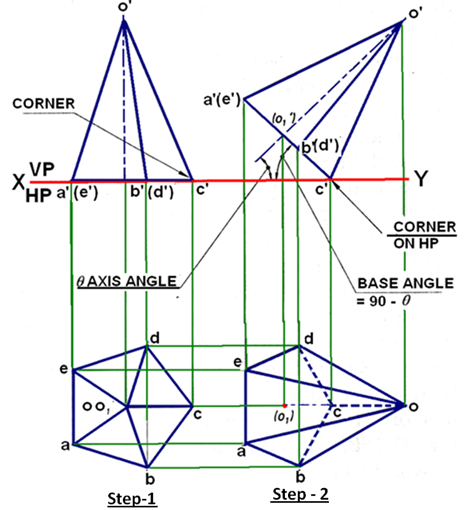

Following the above procedure, the top and front views of the pyramid when it rests on HP on one of its base corners such that the two base edges containing the corner on which it rests make equal inclinations with HP is shown in figure 3.

Figure 3 showing the projection of a pyramid resting on HP on one of its base corners with two base edges containing the corner on which it rests make equal inclinations with HP

c. Projections of a pyramid lying on one of its triangular faces on HP

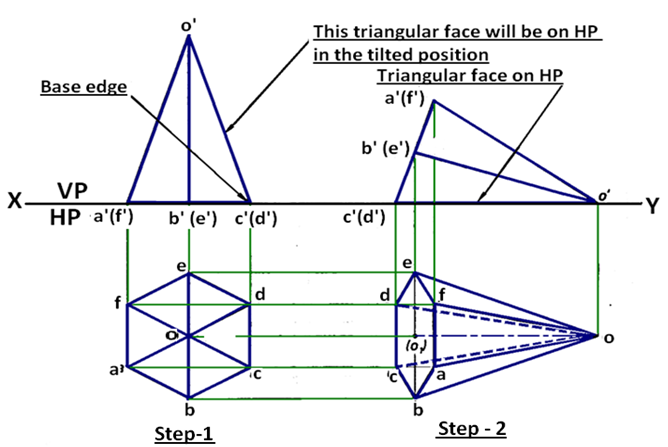

If a pyramid has to be placed on one of its triangular faces on HP, then initially let the pyramid be placed with its base on HP such that the base edge containing that face is perpendicular to VP. (i.e. perpendicular to XY line). Figure 4 illustrates the sequence in obtaining the projections of the pyramid. In the first front view, the inclined line, o’c’(d’) represents a triangular face. Redraw the front view such that the line representing the triangular face o’c’(d’)  lies on HP. Project the top view in this position.



Figure 4 Illustrates the sequence in obtaining the projections a pyramid lying on one of its triangular faces on HP
