Automatic Generation Control (AGC) (Con td...)

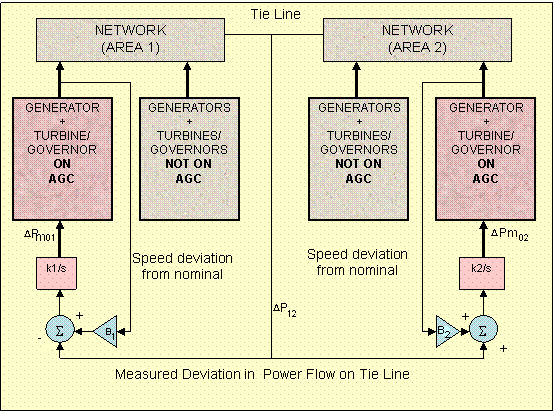

The following figure shows how a generator in each area in a 2 area system receives feedback from a tie line (P12). The feedback is combined with the speed deviation signal in a certain proportion (decided by the constant B). It is then fed to an integral controller, the output of which changes Pm0.
