| For a Write operation, the information at the input lines are transferred to the selected circuits.

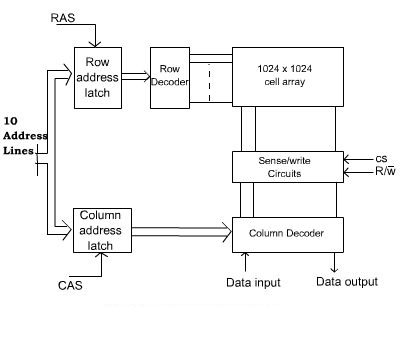

Figure 3.10: Organization of a 1M x 1 Memory chip. |
The 1MB (Mega byte) memory chip with 20 address lines as shown in the figure 3.9. The same memory chip (1MB) with 10 address lines ( where row & column address are multiplexed) is shown in Figure 3.10. |
