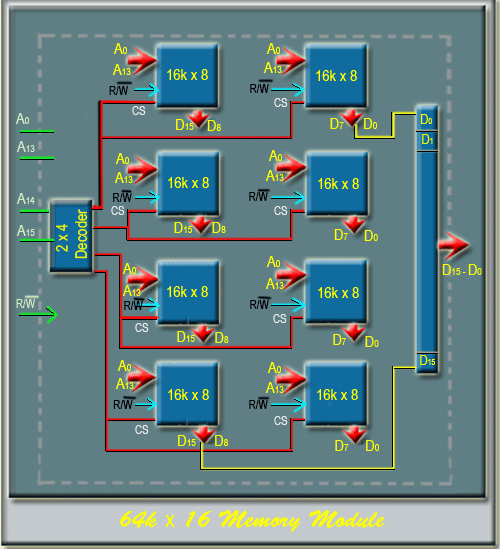

The block diagram of a 16k x 8 memory chip is shown in the figure 3.11. The block diagram of a 64k x 16 memory module constructed with the help of eight 16k x 8 memory chips is shown in the figure 3.12.
