The different steps involved in the analysis by Finite Element Method |
| 1. |
Discritization into the element |
| |
The given footing is divided into an equivalent system of finite elements, by a process known as Discritization. The equivalent system may consist of triangular or quadrilateral and/or tetrahedron or hexahedron based on whether the problem is solved as in 2-D or 3-D plane. |
| |
|
| |

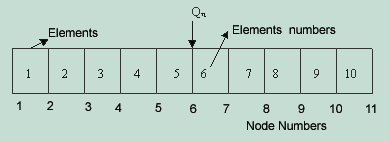

Fig.3.14 Discritization into Elements |
| |
|
