V.8:  Inferential Control

Often the process plant has certain variables that cannot be measured on-line, however, needs to be controlled on-line. In such cases, the unmeasured variables to be controlled can be estimated by using other measurements available from the process. Consider the following example:

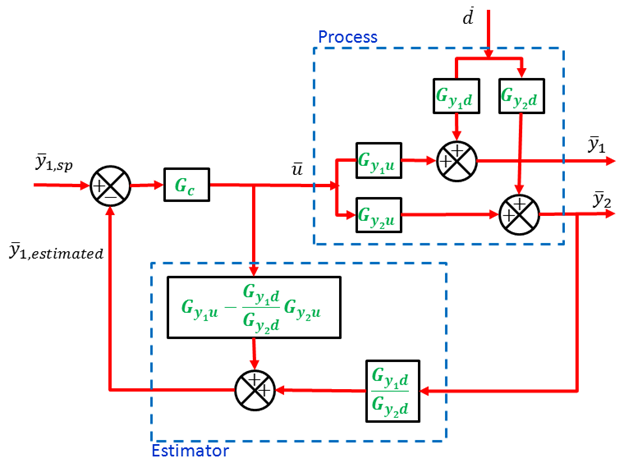

Fig. V.18: Inferential Control
