4.  DRYING EQUIPMENT

4.1 Batch Type Dryers

4.1.1 Tray Dryer

Schematic of a typical batch dryer is shown in figure 2.1. Tray dryers usually operate in batch mode, use racks to hold product and circulate air over the material. It consists of a rectangular chamber of sheet metal containing trucks that support racks. Each rack carries a number of trays that are loaded with the material to be dried. Hot air flows through the tunnel over the racks. Sometimes fans are used on the tunnel wall to blow hot air across the trays. Even b affles are used to distribute the air uniformly over the stack of trays. Some moist air is continuously vented through exhaust duct; makeup fresh air enters through the inlet . The racks with the dried product are taken to a tray-dumping station.

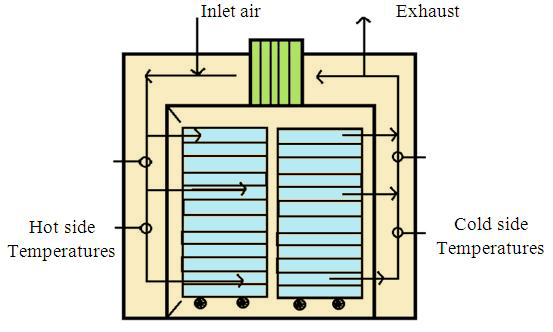

Figure 2.1: Tray dryer

These types of dryers are useful when the production rate is small. They are used to dry wide range of materials, but have high labor requirement for loading and unloading the materials, and are expensive to operate. They find most frequent application for drying valuable products. Drying operation in case of such dryers is slow and requires several hours to complete drying of one batch. With indirect heating often the dryers may be operated under vaccum. The trays may rest on hollow plates supplied with steam or hot water or may themselves contain spaces for a heating fluid. Vapour from the solid may be removed by an ejector or vacuum pump . Freeze-drying involves the sublimation of water from ice under high vacuum at temperatures well below 0°C. This is done in special vacuum dryers for drying heat-sensitive products.
