Adsorption Isotherms and Isobars
When an adsorbate molecule in the gas phase comes in contact with the surface of the adsorbent, an equilibrium distribution of the adsorbate molecules takes place between the adsorbent surface and the gas phase. This equilibrium distribution depends upon various factors including partial pressure of adsorbate, temperature, nature of adsorbate, and the surface area and nature of adsorbent. Adsorption isotherm shows the amount of molecules adsorbed on the solid surface as a function of the equilibrium partial pressure at constant temperature.
Adsorption isobar shows the variation of adsorbed species with temperature at constant pressure.
The adsorption-desorption isotherm characterize the adsorbent. It depicts the nature of adsorption - desorption process occurring on the surface and also reveals the pore structure of the adsorbent. Often the isotherm is expressed as standard volume adsorbed as a function of relative pressure. Relative pressure is defined as the ratio of actual gas partial pressure over the saturated vapor pressure of adsorbate (P0) under constant temperature. By Brunauer empirical classification, five types of isotherms are observed for solid adsorbents as shown in Fig 1.

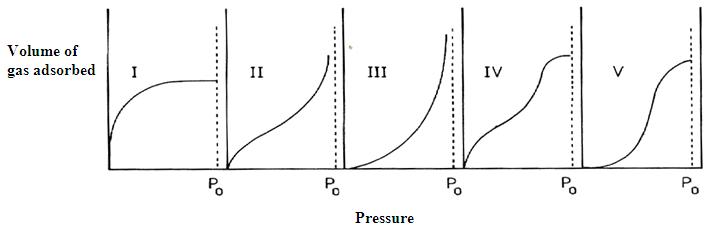

Fig. 1. Types of adsorption isotherm according to Brunauer classification
Type I isotherm is for very small pores or microporous adsorbents. Adsorption occurs by filling of the micropores. The adsorbate uptake rate depends on the accessible micropore volume rather than total internal surface area. Type II and Type IV isotherms are observed for non-porous or macroporous adsorbents with unrestricted monolayer-multilayer adsorption. At first the adsorption volume rapidly increases at low relative pressures of less than 0.01 due to interaction of the adsorbate molecules with the higher energetic region followed by the interaction with less energetic region. When the monolayer formation of the adsorbed molecules are complete, multilayer formation starts to take place corresponding to the ‘sharp knee' of the isotherms. As the relative pressure approaches unity an abrupt rise indicates the bulk condensation of adsorbate gas to liquid. Type III and Type V isotherms do not have the ‘sharp knee' shape implying stronger adsorbate – adsorbate interactions than adsorbate-adsorbent interaction.
