Ecological Pyramids: In a food chain, producers and consumers at different trophic level are connected in terms of number, biomass and energy. These properties reduces from producers to consumers and representing these parameters for food chain gives a pyramid with a broad base and a tapering apex (Figure 39.6). Ecological pyramids can be of three types:

(a) Pyramid of Numbers
(b) pyramid of biomass
(c) pyramid of energy

Example of inverted ecological pyramid is provided by parasitic food chains (Figure 39.7). A single mango tree supports large number of birds, which in turn supports a large number of parasites like lice and bugs. Hyperparasites, such as bacteria and fungus are the greatest in the number and occupy the top of the invertes pyramids.

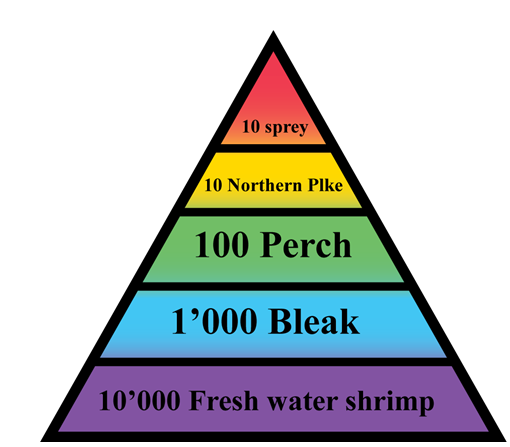

Figure 39.6: Ecological Pyramid in a pond.
