The distance between the two is the order of astigmatism. It is absent for the points lying on the axis and increases as the point moves away from the axis. The loci of T and S fro points at different distances from the axis of the lens forms a paraboloid as shown in figure.

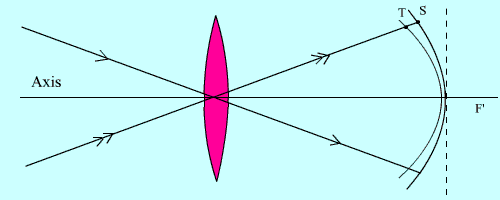

Fig.9.3.3
