The range (R) is:

A more significant parameter of interest is the projected range (R_P) and it is the distance travelled normal to the surface as shown in Fig. 3.47.

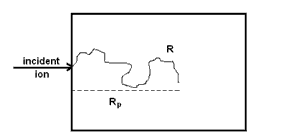

Fig. 3.47 : Range (R) and projected range (R _P ) in ion implantation
