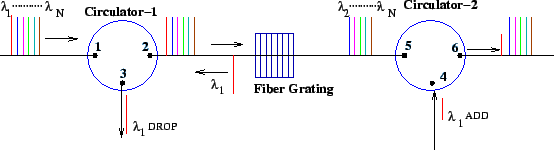

The following figure illustrates the design of an OADM. Several wavelengths from a multiplexer are fed into port 1 of the first optical circulator. The signal passes to port 2 and then on to a fiber grating which selectively reflects , which, in turn, becomes input to port 2.
