The graphical representation, designation and explanation of various components and equipments used in hydraulic and pneumatic system are given in table 5.7.2. Readers are suggested to study these representations carefully.

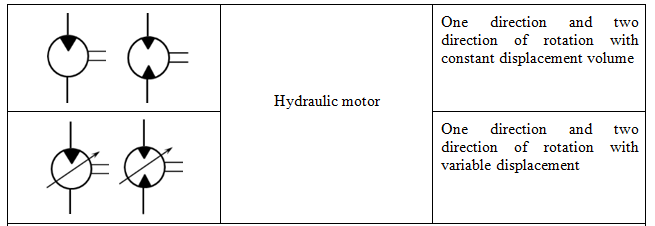

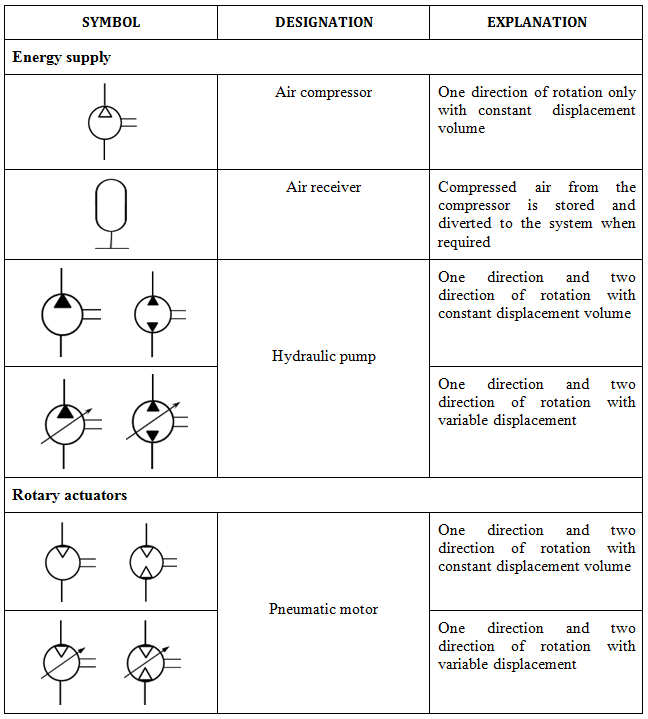

Table 5.7.2 Graphical symbols of hydraulic / pneumatic elements and equipments
