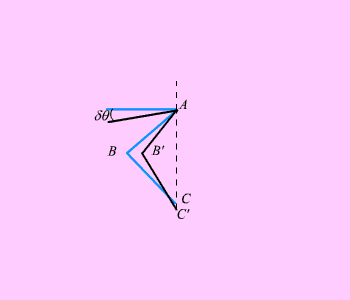

For solving this problem, let us give a virtual rotation  ccw to the lever. As a result of this, the punch moves downward. Let us say that the vertical punch force is Fp . Figure below shows the original (blue) and virtually displaced (black) configuration. Now let us calculated the virtual work done by the forces. |
