Virtual Work Method

Another example:

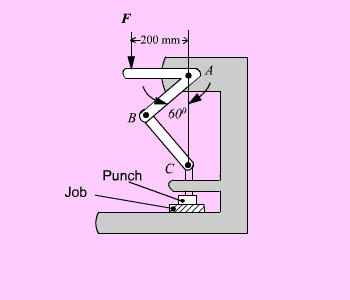

    A hand operated press is shown in the figure. If a force F is applied at the lever, find out the compressive force acting on the job. The lengths of AB and BC each are 200 mm.
