Internal Organization of Memory Chips

A memory cell is capable of storing 1-bit of information. A number of memory cells are organized in the form of a matrix to form the memory chip. One such organization is shown in the Figure 3.5.

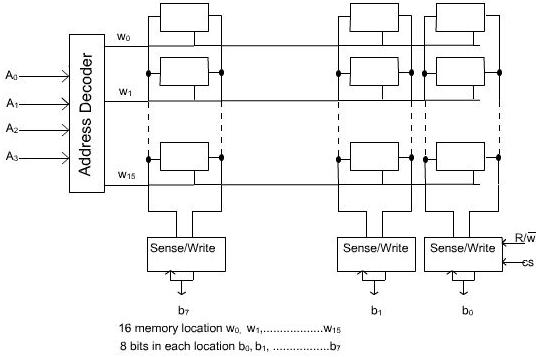

                                                Figure 3.5: 16 X 8 Memory Organization
