In an SRAM, binary values are stored using traditional flip-flop constructed with the help of transistors. A static RAM will hold its data as long as power is supplied to it.

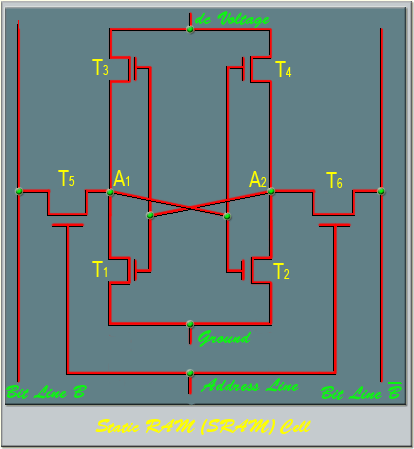

A typical SRAM constructed with transistors is shown in the figure 3.4.
Click on Image To View Large Image
Figure 3.4: Static RAM (SRAM) cell
