The binary storage cell is the basic building block of a memory unit.
The binary storage cell that stores one bit of information can be modelled by an SR latch with associated gates. This model of binary storage cell is shown in the figure 3.2.

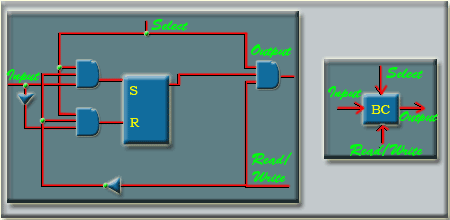

Figure 3.2: Binary Storage cell made up of SR-Latch
