Examples

Ex24-2 The horizontal angle observed at a theodolite station by a subtense bar with vanes 2.0 m apart, is 0° 30'. Find the horizontal distance between the theodolite station and subtense bar.

If the bar is 1° out from the normal direction to the line of sight, determine the error in the measurement of horizontal distance.

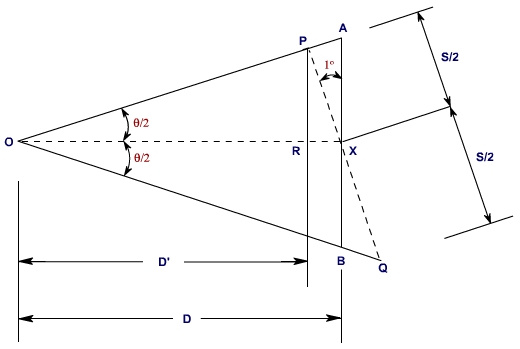

Figure Ex24-2

Solution :

Referring from Figure 24.5, given s = 2.0 m; q = 30', Then from

The horizontal distance between the subtense bar and the theodolite,

Referring figure Ex 24.2,

Therefore Error in horizontal distance = D - D'

= 229 .18 - 229.145 = 0.035 m
