Module 5 : Force Method - Introduction and applications

Lecture 5 : Tutotial Problems

	TUTORIAL PROBLEMS

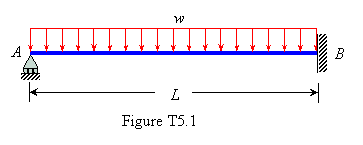

T5.1	Determine the support reactions of the propped cantilever beam as shown in Figure T5.1. Use moment area method and verify by conjugate beam method.
		Answer

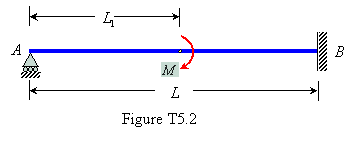

T5.2	Determine the support reactions of the propped cantilever beam as shown in Figure T5.2. Use moment area method or conjugate beam method.
		Answer

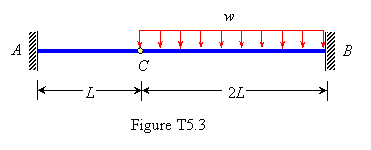

T5.3	Determine the shear in the internal hinge and support reactions of the fixed beam shown in Figure T5.3
		Answer
T5.4	Determine the force in the spring of the beam shown in Figure T5.4.
		Answer
