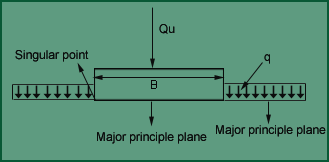

Fig 3.10 Strip foundation free body diagram
Singular pint: - where the state of stress jumps from one state of stress to the other.
At points A & C both major principal plane and minor principal plane are meeting.
Two cases of failures,
- footing goes down by keeping q constant, no yielding of surrounding soil.
– surrounding soil goes down and footing goes up.
