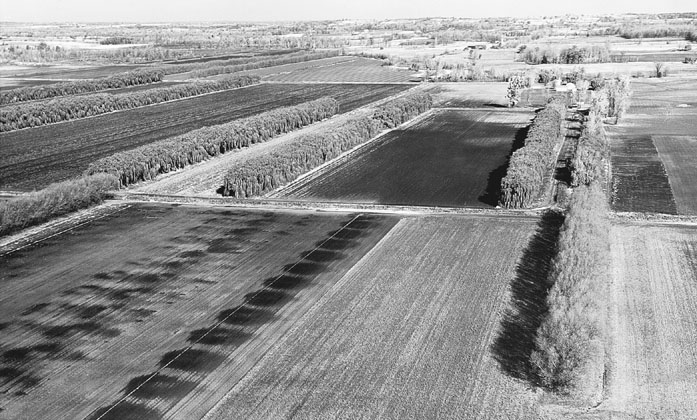

Wind erosion control in an area of productive Histosols (Saprists) in central Michigan. Prior to being cleared and drained, this area was a partially forested bog. When dry, cultivated Histosols are very light and fluffy and susceptible to wind erosion. The rows of trees (mainly willows) were planted perpendicular to the prevailing winds to slow the wind velocity and protect these valuable organic soils from erosion. Wetting the soil surface is another effective means of reducing wind erosion, as seen by the darker-colored field in the background (where the water table was raised) and the darker circles in the foreground where sprinkler irrigation was used. Note that the photo was taken in early spring before most crops were planted and before the trees had fully leafed out. (Photo courtesy of USDA Natural Resources Conservation Service)

6. Soil erosion and tillage

Agricultural practices of tillage have the most direct consequences on soil erosion. Can you discuss the relationship between the two?

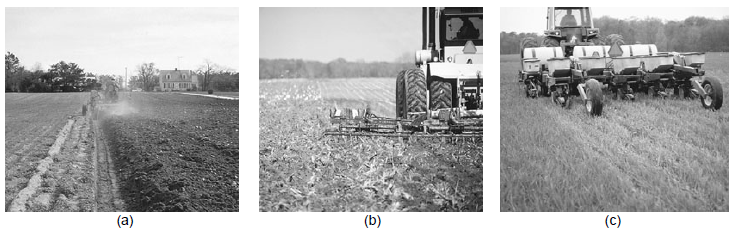

Conventional and conservation tillage practices. (a) In conventional tillage, a moldboard plow inverts the upper soil horizon, burying all plant residues and producing a bare soil surface. (b) A chisel plow, one type of conservation tillage implement, stirs the soil but leaves a good deal of the crop residues on the soil surface. (c) In no-till systems, one crop is planted directly into a cover crop or the residue of a previous cash crop, with only a narrow band of soil disturbed. No-till systems leave virtually all of the residue on the soil surface, providing up to 100% cover and nearly eliminating erosion losses. Here soybeans are planted into a cover crop that will be killed with a herbicide (weed- killing chemical) to form a surface mulch. (Photos courtesy of R. Weil)
