Module 2 : Contaminants and Pathways Into Atmosphere

Lecture 8 : Photochemical Smog



  • Photochemical smog is a mixture of air pollutants formed by the reaction of nitrogen oxides and volatile organic hydrocarbons when they are exposed to sunlight.











  • More than 100 primary and secondary pollutants can be formed.





VOC + NOx + heat + sunlight

ground level ozone (O3 )

+ other photochemical

oxidants

+ aldehydes

+ other secondary air pollutants

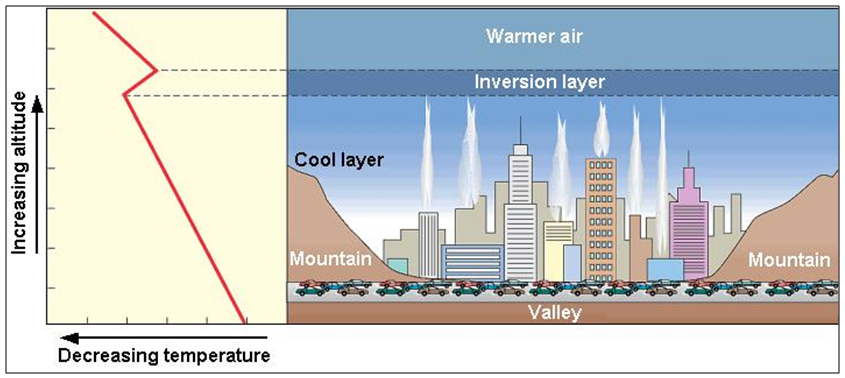

Temperature Inversions

During daylight hours, the sun warms the ground which warms the air near the Earth's surface. The warm air rises as more dense cool air displaces it. Any pollution in the air normally disperses in the turbulence caused by the mixing of the air. When a layer of cool air traps the layer of warm air near the Earth's surface, then the situation is known as a temperature inversion. In this case, pollutants are not dispersed but continue to build up in the still, stagnant air.

Temperature Inversions

Subsidence Inversion
