Module 5 : Modern Characterization of materials

Lecture 35: Transmission electron microscopy

TEM – Transmission Electron Microscopy

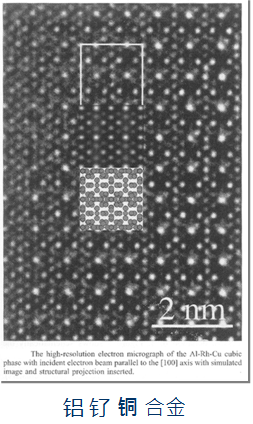

Lattice imaging





Use many diffracted beams

Slightly off-focus

Need Very thin specimen region

Need precise specimen alignment

See channels through foil

Channels may be light or dark in image

Usually do image simulation to determine features of structure
