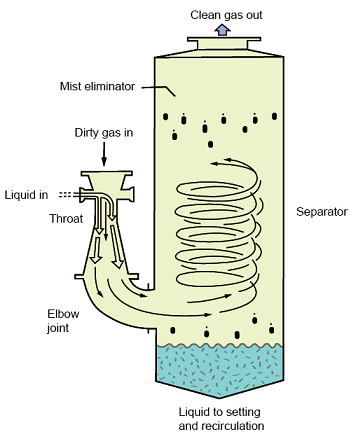

Figure 5.6 : Venturi scrubber with cyclone separator and eliminator



7.3 Jet scrubber

In this scrubber, water flow is used in jet ejector to aspirate dusty air and to provide droplets for collecting particulates. Jet scrubber is used when it is not economical to used fan for a dust collection system (figure 5.7). Also, it can be used as a gas absorber.

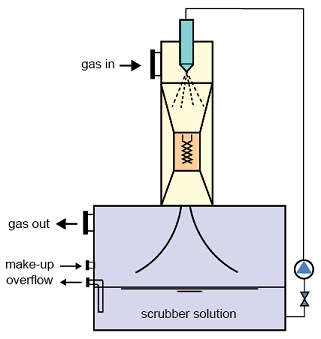

Figure 5.7 : Jet scrubber
