2.7 Agitated Thin Film Evaporator

Agitated thin film evaporator consists of a vertical steam-jacketed cylinder and the feed solution flows down as a film along the inner surface of large diameter jacket ( Figure 3.5 ). Liquid is distributed on the tube wall by a rotating assembly of blades mounted on shaft placed coaxially with the inner tube. The blades maintain a close clearance of around 1.5 mm or less from the inner tube wall.

The main advantage is that rotating blades permits handling of extremely viscous solutions. The device is suitable to concentrate solutions having viscosity as high as up to 100 P.

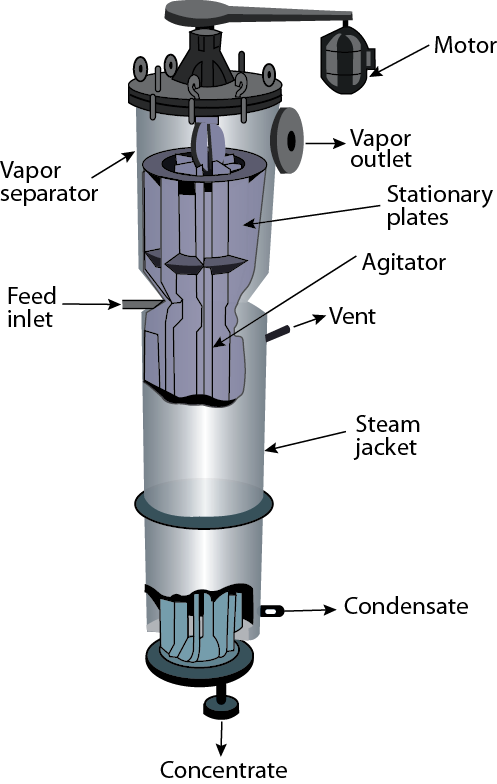

Figure 3.5 . Agitated thin-film evaporator
