Physisorption versus Chemisorption

1.  Since physisorption involves only weak molecular interaction, the associated enthalpy changes are small ( in the range of 10 to 40 kJ /mol). On the other hand, in case of chemisorption, enthalpy change is quite large and can range from 80-400 kJ /mol.

2.  The Fig. 3 compares the volume of gas adsorbed as a function of temperature under physisorbed and chemisorbed conditions. In physisorption, the molecules are adsorbed on surface by weak interaction. With increase in temperature, adsorbed molecules gain excess energy and their tendency to escape from the surface increases. Hence volume of gas adsorbed on the surface decreases with temperature as shown in Fig. 3. However, the chemisorption involves higher interaction energy between adsorbate and adsorbent molecules and hence is favored by temperature rise. Hence at low temperature range volume of adsorbed gas increases with temperature. However, at higher temperature range as the adsorbed molecules gains excess energy, rate of desorption becomes higher resulting in decrease in adsorbed gas volume as shown in Fig. 3.

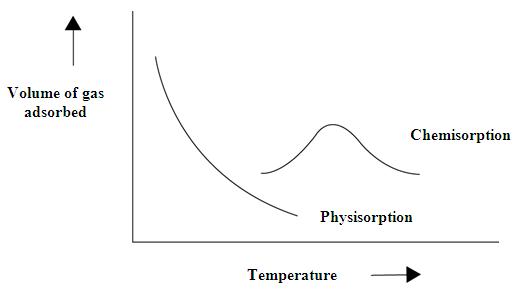

Fig. 3. Volume of gas adsorbed as a function of temperature for physisorption and chemisorption processes

3.  In case of chemisorption , since there is electronic interaction between adsorbate and adsorbent molecules, only a monolayer of adsorbate can be formed on the adsorbent surface. In case of physisorption, the first monolayer formed on the surface of the adsorbent can act as adsorbing surface for formation of next layer of adsorbate and so on. This phenomenon is called multilayer adsorption. The formation of monolayer and multilayers of the adsorbed molecules on a surface is shown in Fig. 4. For the physisorption, volume of gas adsorbed increases with pressure due to increase in concentration of adsorbate and formation of multilayers. However for chemisorption process which corresponds to monolayer formation, the effect of pressure is not significant.

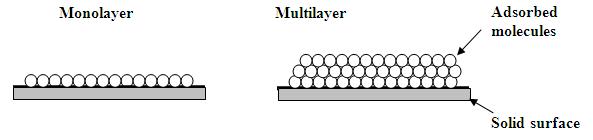

Fig. 4. Monolayer and multilayer formation of the adsorbed molecules on a surface

4.  Chemisorption is specific for adsorbate and adsorbent pair. Specific solid adsorbent can undergo electronic interaction only with specific adsorbate gas molecule.

5.  Physisorption is highly reversible while chemisorption can be irreversible.

6.  Physisorption is important for estimating the total surface area. It also provides a basis for estimating the pore volume and pore size distributions. On the other hand, chemisorption is important in estimation of area of catalytic active sites as well as its dispersion.
