Module 4 : THERMOELECTRICITY
Lecture 21 : Seebeck Effect

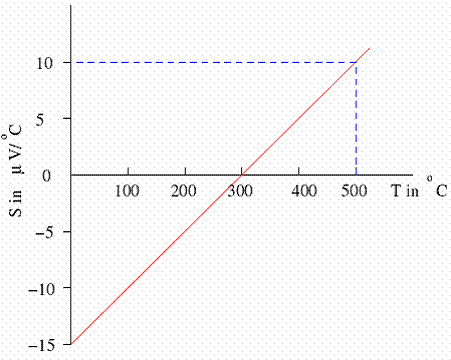

  (Ans. (ii) $300^\circ$ C, $600^\circ$ C; No change, $550^\circ$ C)
  Exercise

A chromel-constantan thermocouple with the cold junction at $0^\circ$ C has a linear variation of the open circuit voltage for temperatures of the hot junction between $0^\circ$ C and $200^\circ$ C. Calculate the thermo-emf when the hot junction is maintained at $150^\circ$ C. [ Hint : Emf is zero when both the junctions are at the same temperature] (Ans. 9.5 mV)
