Module 3 : Introduction to PIC Microcontrollers

Lecture 20 :Timer modules in PIC Microcontroller

Overview of Timer Modules :

PIC 16C74A has three modules, viz., Timer-0, Timer-1 and Timer-2. Timer-0 and Timer-2 are 8-bit timers. Timer-1 is a 16-bit timer. Each timer module can generate an interrupt on timer overflow.

Timer-0 Overview:

The timer-0 module is a simple 8-bit UP counter. The clock source can be either the internal clock (fosc /4) or an external clock. When the clock source is external, the Timer-0 module can be programmed to increment on either the rising or falling clock edge. Timer-0 module has a programmable pre-scaler option. This pre-scaler can be assigned either to Timer-0 or the Watch dog timer, but not to both.

The Timer-0 Counter sets a flag T0IF (Timer-0 Interrupt Flag) when it overflows and can cause an interrupt at that time if that interrupt source has been enabled, (T0IE = 1), i.e., timer-0 interrupt enable bit = 1.

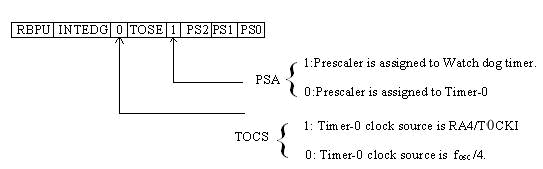

OPTION Register Configuration :
Option Register (Addr: 81H) Controls the prescaler and Timer -0 clock source. The following OPTION register configuration is for clock source = fosc /4 and no Watchdog timer.
Timer-0 use without pre-scalar

  Internal clock source of f osc /4. (External clock source, if selected, can be applied at RA4/TOCKI input at PORTA).

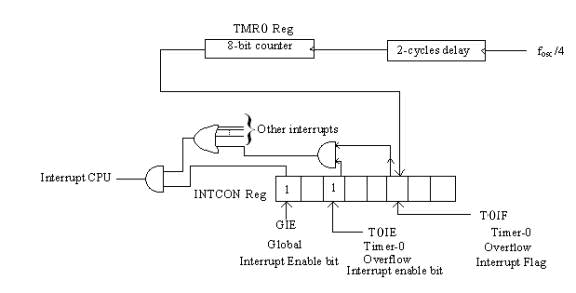

The following diagram shows the timer use without the prescaler.
Fig 20.1   Timer - 0 operation  without prescaler

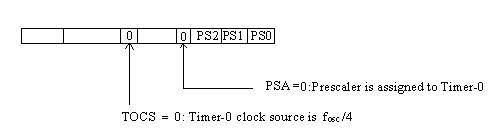

Timer-0 use with pre-scalar:

The pre-scalar can be used either with the Timer-0 module or with the Watchdog timer. The pre-scalar is available for Timer-0 if the pre-scalar assignment bit PSA in the OPTION register is 0. Pre-scalar is a programmable divide by n counter that divides the available clock by a pre-specified number before applying to the Timer-0 counter.

Fig 20.2  Timer - 0 with prescaler
