Module 4.8 :Codeword Assignment:

Differential PCM

(DPCM) can be viewed as generalization of DM. In DM, the difference signal is quantised.

The most recently coded can be viewed as a prediction of , and can be viewed as the error between and a prediction of .

In DPCM-      (1) prediction of current pixel intensity is obtained more than from previously coded pixel intensity.

(2) Unlike DM, in DPCM more than one bit can be used in coding the error.

A DPCM system is shown in Fig (18 ).

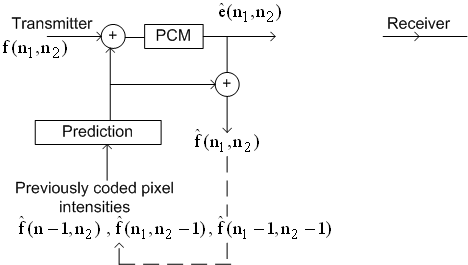

Figure 18 : DPCM SYSTEM

To code current pixel intensity , it is predicted from previously reconstructed pixel intensities. The predicted value is . In the figure we have assumed that were reconstructed prior to coding .

We are attempting to reduce the variance of in this system by using previously coded pixels in the prediction of . The prediction error is quantized by a PCM system with uniform or non-uniform quantization. The quantized value is transmitted.

At the receiver is combined with to get . The previously reconstructed pixel values and the specific way to predict to get , is known both at transmitter and receiver.

(continued in the next slide)
