The resulting cross section after the wet oxidation is shown in Fig. 3.18 clearly indicating the oxide-silicon interfaces.

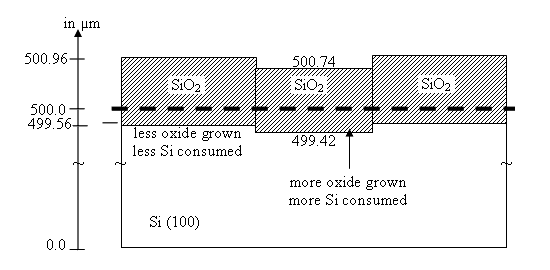

Fig. 3.18 : The Si-SiO2 interface changes before and after thermal oxide growth
