Chapter 2 : Operating Principles of MOS Transistors

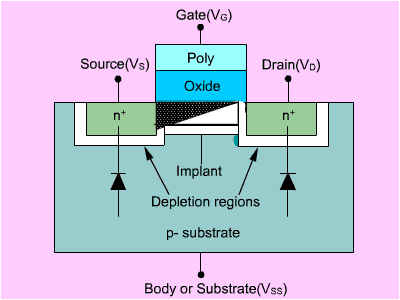

Figure 2.4: An nMOS enhancement mode transistor in non-saturated (linear or resistive) mode. Note that
V
GS
> V
th
, and
V
DS
< V
GS
- V
th
.
