he = effective length
E = incident field strength
Voc = heE open circuit voltage
Zload = Input impedance of the receiver.
Re, Rr and XA as defined earlier.

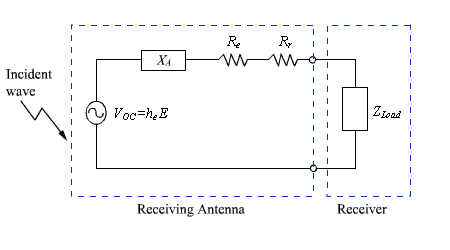

Fig 7.6 (b): Equivalent circuit of receiving antenna
| Fundamentals of Antennas and Radiating systems | |
he = effective length E = incident field strength Voc = heE open circuit voltage Zload = Input impedance of the receiver. Re, Rr and XA as defined earlier. |
Fig 7.6 (b): Equivalent circuit of receiving antenna |
