Part 2 : Nanostuctures
Module 4 : Transport
Lecture 7 : Depletion Model and width of the depletion region
Schottky effect
In a Schottky diode, as an electron leaves the metal and enters the semiconductor, it leaves behind a (+)ve image charge and interacts with it via the image force.

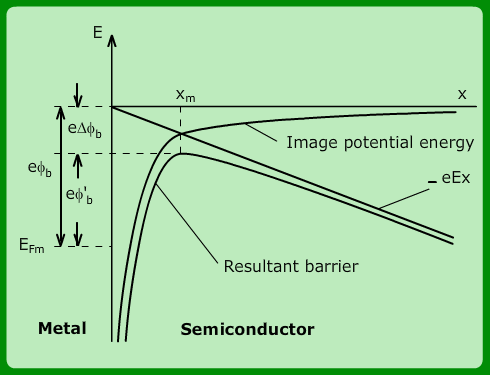

Fig. 4.15 : Schottky effect
