Performance of a heat exchanger

A heat exchanger captures and uses the heat of flue gases simultaneously. Performance of a heat exchanger can be evaluated in terms of its ability to capture and to preheat the air to the maximum possible temperature.

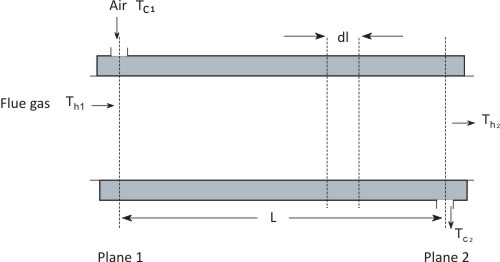

Consider a co – axial type heat exchanger in which hot stream enters at  and exits at . Cold stream say air enters at temperature  and pre heated stream exists at  as shown in the figure.
