For gas flowing substantially at atmospheric pressures in furnaces, flues and ordinary metallurgical equipments, and for liquid flow system mechanical energy balance is very useful. It is
| [Mechanical energy input + other energy converted into mechanical energy =mechanical energy output + mechanical energy converted into heat] |
(1) |

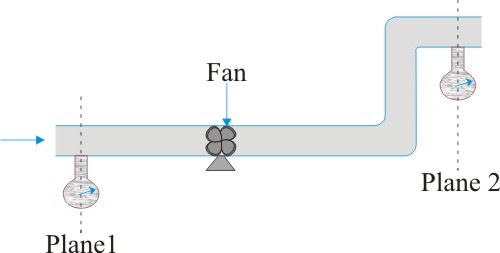

Consider flow of fluid from point 1 to 2 at steady state as shown in the figure:
.
| Figure 21.1: |
System under consideration for macroscopic balance |
|
