Now consider the use of heat recovery device such as waste heat boiler. The POC enters the waste heat boiler and exit the boiler at 600K, Fifteen percent (15%) of the heat of POC is lost to the surrounding from the boiler. Show the flow of energy

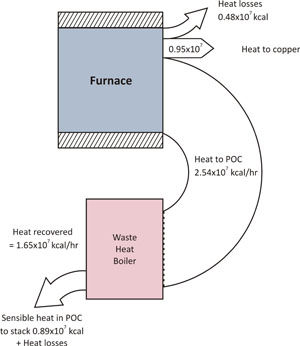

Figure 18.3: |
Energy flow diagram of the furnace and heat recovery system |
Reference: R. Schumann: Metallurgical Engineering Ptinciples
|
