Module 2: Active Vibration Control of Smart Composite Plate
Lecture 19: Element Mass Matrix

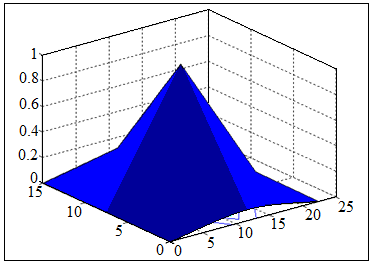

Figure 19.2: First mode shape from HPFE
Figure 19.3: First six mode shapes from ABAQUS software
Table 19.2 Natural frequencies of passive composite plate obtained by using HPFE and ABAQUS
Mode
Modal frequencies by HPFE (Hz)
Modal frequencies by ABAQUS (Hz)
1
48.31
44.67
2
99.13
92.66
3
137.47
123.12
4
218.37
200.38
5
261.23
241.39
6
372.41
334.10
The fundamental frequencies obtained by HPFE and the corresponding values obtained by ABAQUS are listed in Table 19.2. The results show that the fundamental frequencies obtained from HPFE with 8 elements used in the present analysis are in good agreement with results from standard FEM package ABAQUS.
