Module 6:Emission Control for CI Engines
  Lecture 29:Diesel Exhaust Gas Aftertreatment



contd...

NH3/NOx Ratio and Ammonia Slip

Based on the stoichiometric considerations, 90% conversion of NOx requires the NH3/NOx molar ratio of about 0.9, assuming NO2 constitutes 10% of NOx. Concentration of NOx in the exhaust gases varies depending upon engine operating conditions. Hence, for a vehicle continuously variable injection rate of urea is required.   If more urea than stoichiometric requirements is injected, unreacted ammonia is emitted in the exhaust which is called ‘ammonia slip’. To minimize ammonia slip, a dynamic urea dosage system governed by engine operating conditions is to be employed.  Even with the dynamic dosage system, ammonia slip occurs during transient operation.
Typical conversion efficiency at different NH3/NO molar ratio and ammonia slip are shown on Fig 6.12.  With increase in NH3/NO molar ratio NOx conversion efficiency increases and but the ammonia slip also increases. An oxidation catalyst is therefore, added to SCR system to prevent emissions of ammonia.

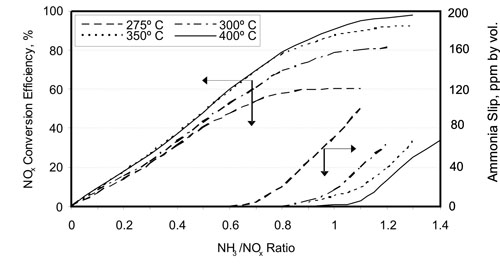

Figure 6.12

NOx conversion and ammonia slip for a SCR catalyst as a function of NH3/NOx ratio.
