Module 6:Emission Control for CI Engines
Lecture 26:An Overview of CI Engine Emission Control
contd....

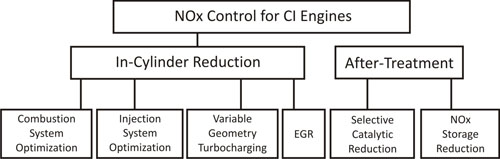

Figure 6.1
An overview of NO
x
reduction techniques in CI engines

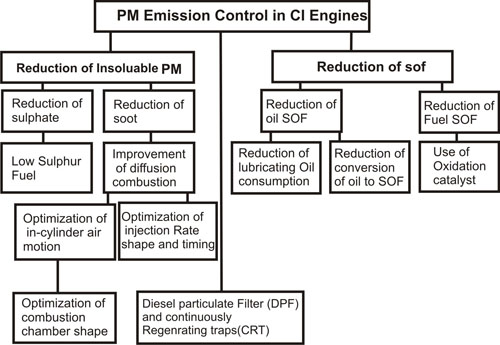

The technologies used for control of PM emissions are presented on Fig. 6.2.
Figure 6.2
An overview of PM reduction techniques in CI engines
