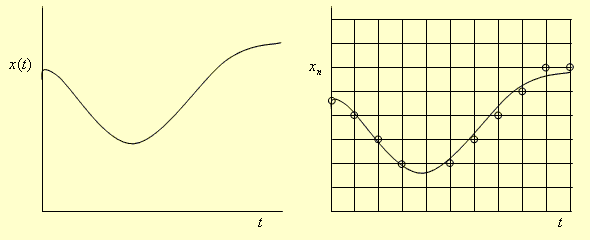

Figure 11.20(b) Analog (left) and digital (right) signals
Necessary data are detected from the vibrating structure by sensors. In a rotating machine, rotor displacements in two directions form a right angle and a rotating speed are detected as voltage variations.
