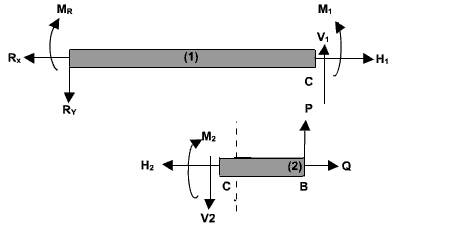

Part (2) is balanced under the action of applied forces and internal forces C. Internal forces on this part are these forces which are applied by part 2 on part 1. On the cut face at C following forces may act:

1.  A force tangential to surface

2. A force normal to surface

3.   A moment
