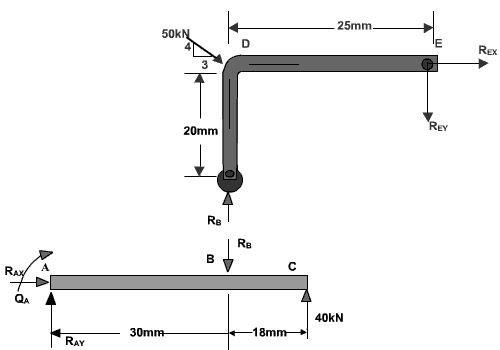

Since we know that if a structure is in the state of equilibrium, every part of it is also in equilibrium, we can split the structure into two separate members as shown below.
Frames

alone. However, in this case there is a single roller at point B. From our previous discussion on support reactions we know that in such a case, there is only one unknown force in the normal direction. Recognizing this fact alone is the key in being able to solve for the reactions in this problem.
