3. Find out the expressions mechanical advantage and effieciency for a machine for which law is

P = mW + c

where P is the effort, W is the load and m and c are the constants for the machine.

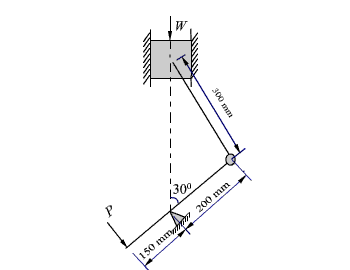

4. Find out the VR and MA of the following ideal machine at the instant shown.
