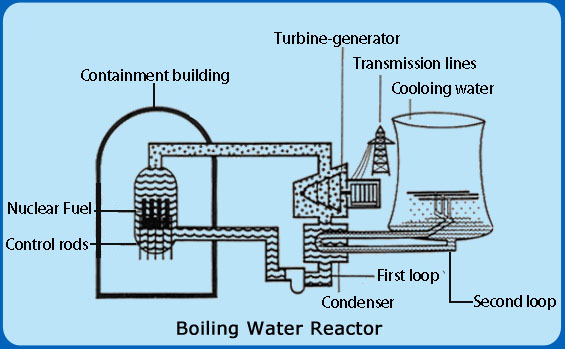

Fig.3 Typical Layout of BWR |
- A more detailed schematic layout is shown in fig. 3.
- Note that control rods are inserted from the bottom of the vessel.
- Note that the reactor building is also called containment building.
- This is because in case of any accidents, the radioactive products are trapped (contained) in this building.
- Note that only reactor is in the containment building.
- The turbine and condenser are housed outside.
|
|
|
|
