Lecture 2
Power Reactors

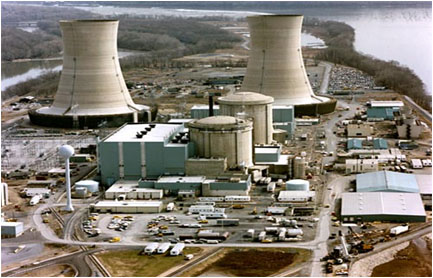

Fig. 1 Nuclear Reactor with Containment
This lecture gives some of the basic concepts used in power stations.
A bird's eye view of a reactor site is shown in fig. 1.
The two cylindrical buildings are the reactor building.
The rectangular buildings behind the reactors are the turbine buildings.
Two large hyperbola shaped towers are the cooling towers.
