Deep Drawing

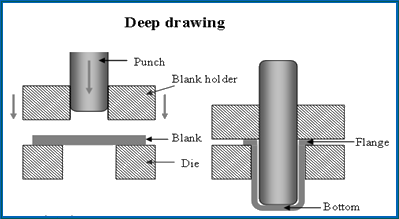

Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter. This is achieved by redrawing the part through a series of dies.

The metal flow during deep drawing is extensive and hence, requires careful administration to avoid tearing or fracture. Following are some of key issues affecting metal flow during deep drawing process and each of them should be considered when designing or troubleshooting sheet metal deep drawing stamping tools.
