Shearing

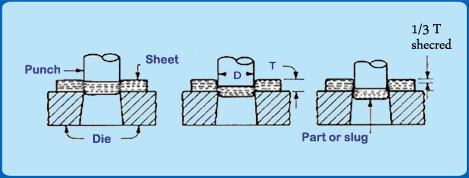

Irrespective of the size of the part to be produced, the first step involves cutting the sheet into appropriate shape by the process called shearing. Shearing is a generic term which includes stamping, blanking, punching etc. Figure 3.4.1 shows a schematic diagram of shearing. When a long strip is cut into narrower widths between rotary blades, it is called slitting. Blanking is the process where a contoured part is cut between a punch and die in a press. The same process is also used to remove the unwanted part of a sheet, but then the process is referred to punching. Similarly, nibbling, trimming are a few more examples of cutting process using the same principle of shearing process.
