| Extended surface heat transfer-1 |
- Extended surface heat transfer is an important engineering application. A new governing equation is often derived.
- For the derivation assume temperature varies only in the x direction. However, heat is lost in the y direction and therefore must be accounted for also. A two (or higher) dimension problem is converted to a one dimensional situation – this is why a new governing equation needs to be derived.
|
| Extended surface heat transfer-2 |

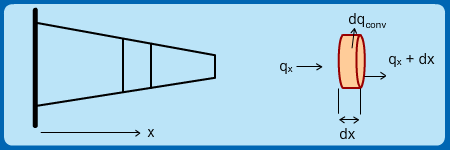

- Consider a surface attached to a parent surface as shown:
|
| |
|
|
- Take small slice at a given distance ‘x’ – need not be circular as shown
|
